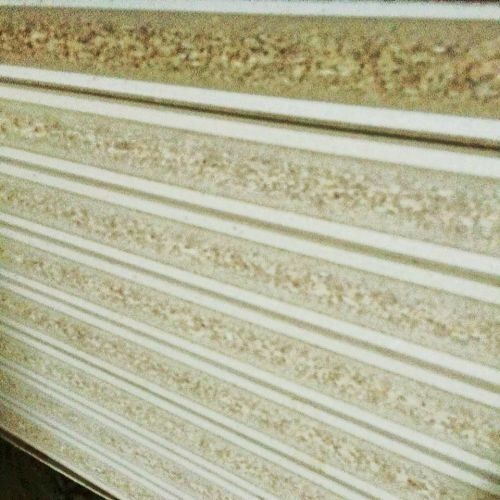

FIRE DOOR CORE TO MAKE WOODEN DOOR

Introduction

We use 3 LAYER TO make fire rated chipboard to make FD120 DOOR,WITH 2 side MGO board density 900 kg/m3 inner facing and 2 MDF density750 kg/m3 outer

Specification

SIZE:64*1220*2440MM, 64*915*2135mm

Density:850~900kg/m³,

The density tolerance:±10%

Moisture Content:3-13%

Water absorption rate:≤8%

Modulus of Rupture:≥7Mpa

Internal bond strength:≥0.20Mpa

Formaldehyd:E0E1NAUF

Feature and Advantage

FD120 fire rated particle board is an engineered wood product, 100% recycled and manufactured from of selected recycled softwood, hard wood, vermiculite, resin, sawmill residues, carpenter’s residues, which is pressed. Fire rated chipboard had been designed, developed and tested according to the British standard (B.S 467 Part 22) to achieve Fire Rating 120 Min.

British standard BS 476-22:1987. Fire tests on building materials and structures. Methods for determination of the fire resistance of non-load bearing elements of construction The sample exposed to high temperature and pressure conditions, the test samples within the specified time bearing weight, integrity and insulation. BS 476-22 Focus on

FAQ

1)Which glue do u use?

We use fire rated glue

2)Which is maximum size could u make ?

The maximum size is 1220*2440mm.
